Phuse Connect 2026

{workr}: a very simple R data pipeline

Zelos Zhu + Jeremy Wildfire

2025-03-20

Agenda

What is {workr}?
Why did we build this?
{workr} ❤️ {pharmaverse}
Automating {workr} 🤖

What is {workr}?

A very simple R data pipeline
(almost too simple?)

{workr} workflows have `meta` and `steps`

# hello_cars.yaml
meta:
  ID: hello_cars
  col: speed
steps:
  - name: dplyr::pull
    output: speed
    params:
      df: df
      col: col
  - name: mean
    output: result
    params:
      lData: speed

`workr::RunWorkflow()`

Pass in your workflow and a list of data (lData)
Each step runs a function (step$name) that updates lData
Steps can use meta and lData as inputs
Returns result of last step by default (can be customized)

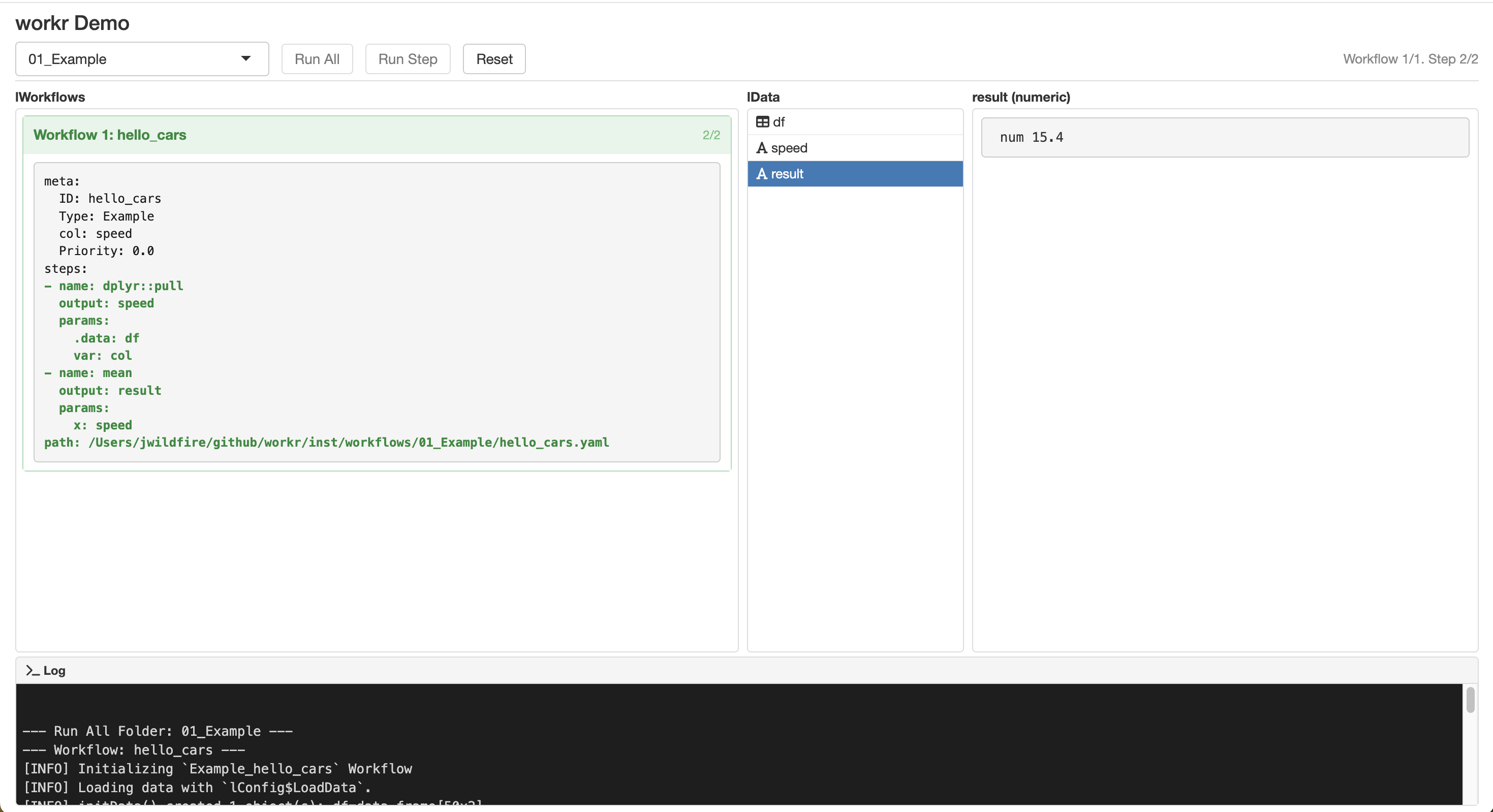

Example 1: Hello Cars

wf <- yaml::read_yaml("hello_cars.yaml")
lData <- list(df = cars)
RunWorkflow(
    lWorkflow = wf,
    lData = lData
)

Example 1: Hello Cars - Step 1

meta:
  ID: hello_cars
  col: speed
steps:
  - name: dplyr::pull # function to be called
    output: speed # output saved as `lData$speed`
    params:
      df: df # `lData$df` (`cars`)  passed as `df` argument
      col: col # `meta$col` (`"speed"`) passed as `col` argument
  - ...

lData$speed <- dplyr::pull(df=cars, col="speed")

# lData after Step 1
list(
    df = cars,
    speed = c(4, 4, ...)
)

Example 1: Hello Cars - Step 2

    ...
    - name: mean        # function to be called
      output: result    # output saved as `lData$result`
      params:
        lData: speed    # `lData$speed` passed as `lData` argument

lData$result <- mean(lData$speed)
Basically mean(cars$speed)

# lData after Step 2
list(
    df = cars,
    speed = c(4, 4, ...),
    result = 15.4
)

RunWorkflow() returns: 15.4
Return full workflow object with: RunWorkflow(bReturnResult = FALSE)

Example 1b: Hello Iris

wf$meta$col <- "dist"
RunWorkflow(wf, lData)

Returns: 42.98 (mean(cars$dist))

lData$df <- iris
wf$meta$col <- "Sepal.Length"
RunWorkflow(wf, lData)

Returns: 5.84 (mean(iris$Sepal.Length))

`workr::RunWorkflows()`

Convenience function to run multiple workflows in sequence
Output of each workflow added to lData for the next workflow

Example 2: Avg. Lab Values - Subset

# subset.yaml
meta:
  ID: subset
  meta:
    col: param
    value: cholesterol
steps:
  - name: dplyr::filter
    output: df
    params:
        df: raw
        expr: !!expr(!!rlang::sym(meta$col) == meta$value)

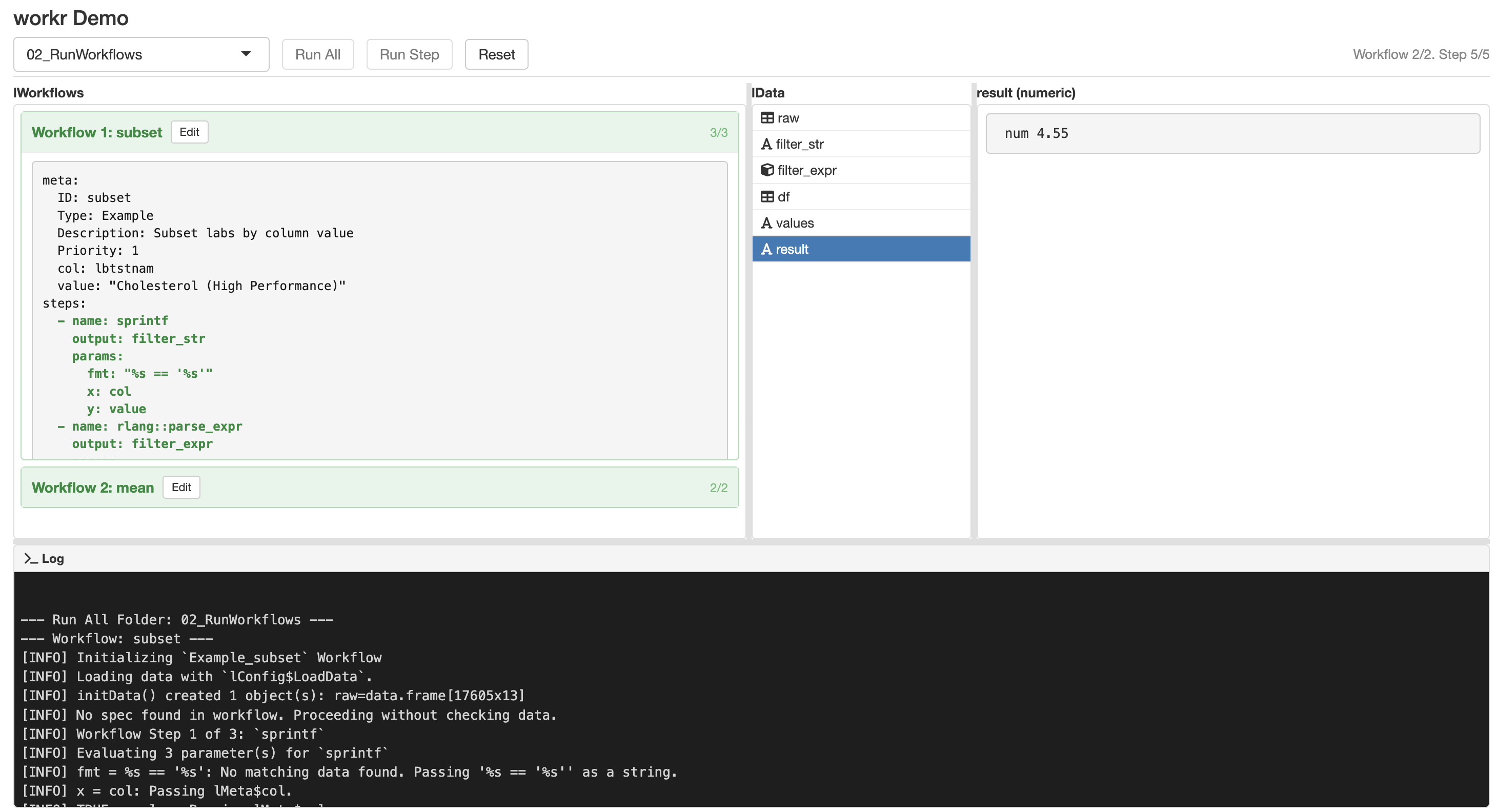

Example 2: Avg. Lab Values - Subset + Mean

sub_wf <- yaml::read_yaml("subset.yaml")
mean_wf <- yaml::read_yaml("hello_cars.yaml")
mean_wf$meta$col <- "value" # adjust for lab data
wfs <- list(sub_wf,mean_wf)
lData <- list(raw = clindata::adam_labs)
RunWorkflows(wfs, lData)

subset workflow filters clindata::adam_labs to cholesterol rows and returns as result as lData$df
mean workflow calculates mean of value column from filtered data
Returns average cholesteral value for all subjests in clindata::adam_labs

That’s really about it

Minimal mental model
Easy to read / debug
Suprisingly scalable

Why did we build this?

RBQM is highly repeatable

Data pipeline: 30 studies × monthly snapshots × 15 metrics × 5 steps
~27,000 metrics / year

But clinical trials are complicated

Study designs vary
Metrics need tweaks
Study-level (and sometimes metric-level) customization required

We didn’t want to maintain 30 study scripts

Needed reusable pipelines / workflows
Existing tools felt a bit complicated (targets, glue, etc.)

So we built {workr}

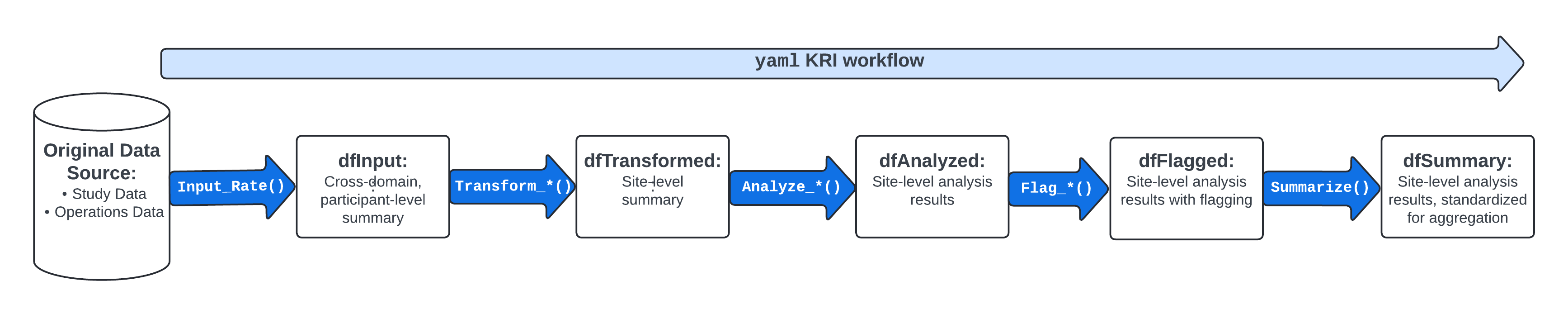

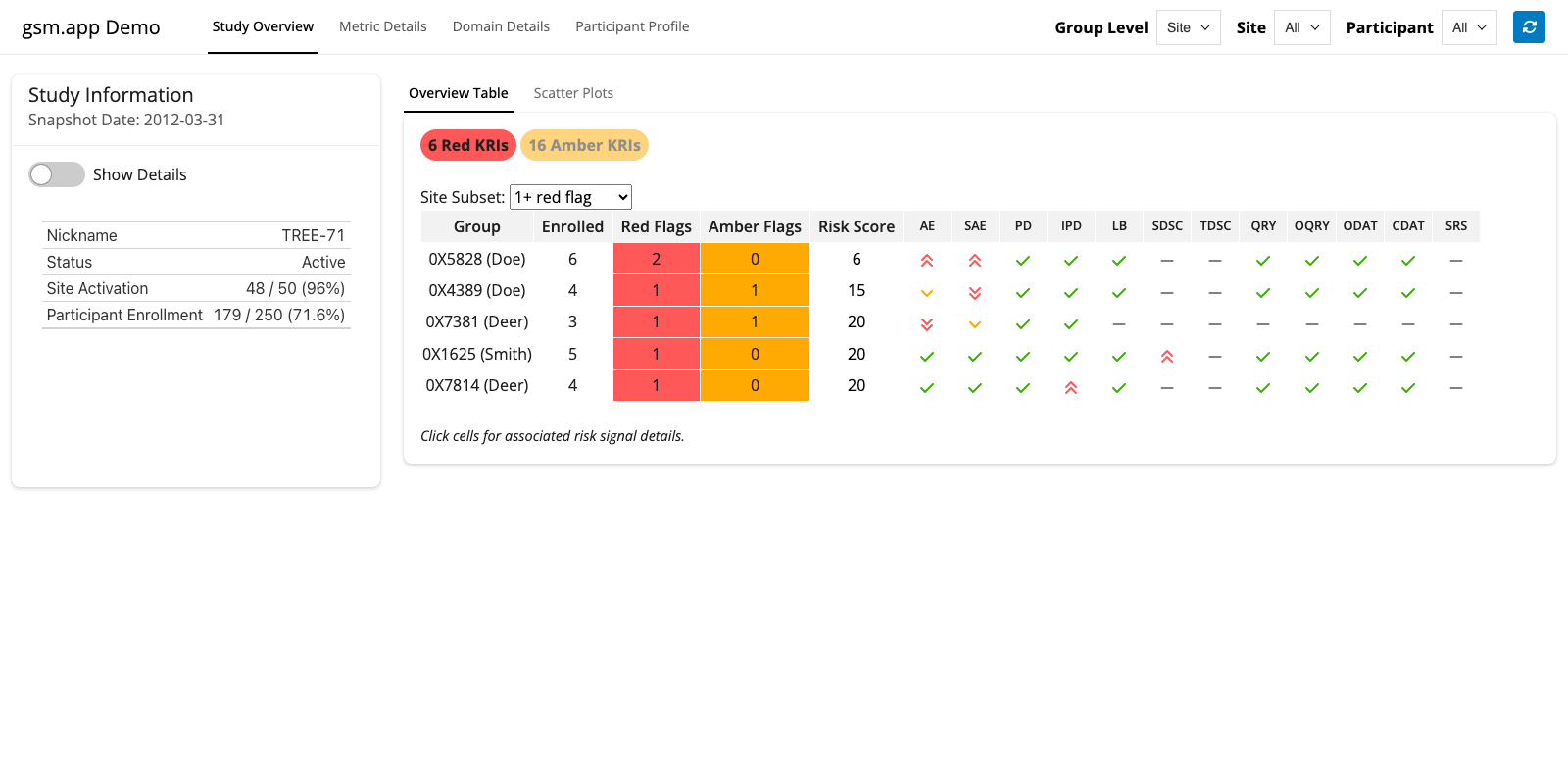

{gsm} analytics pipeline overview (TBD)
Example 2: AE pipeline (TBD)
Example 2a: Custom AE pipeline (TBD)

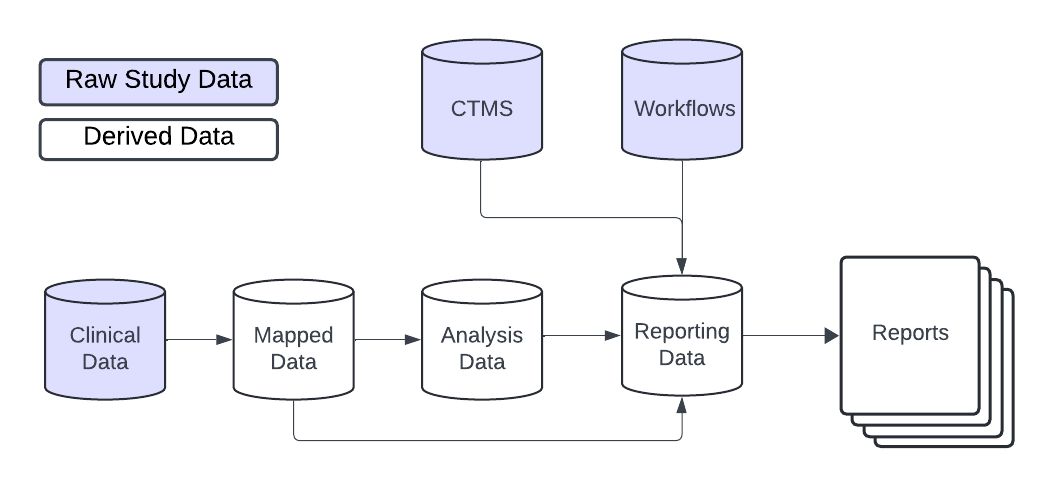

Overall study workflow

Mapping → analysis → reporting → reports
Example 3: One workflow to rule them all (TBD)
Study-level workflows in GitHub

It kind of just works

{workr} is qualified for GxP use as part of {gsm.core} (TBD)

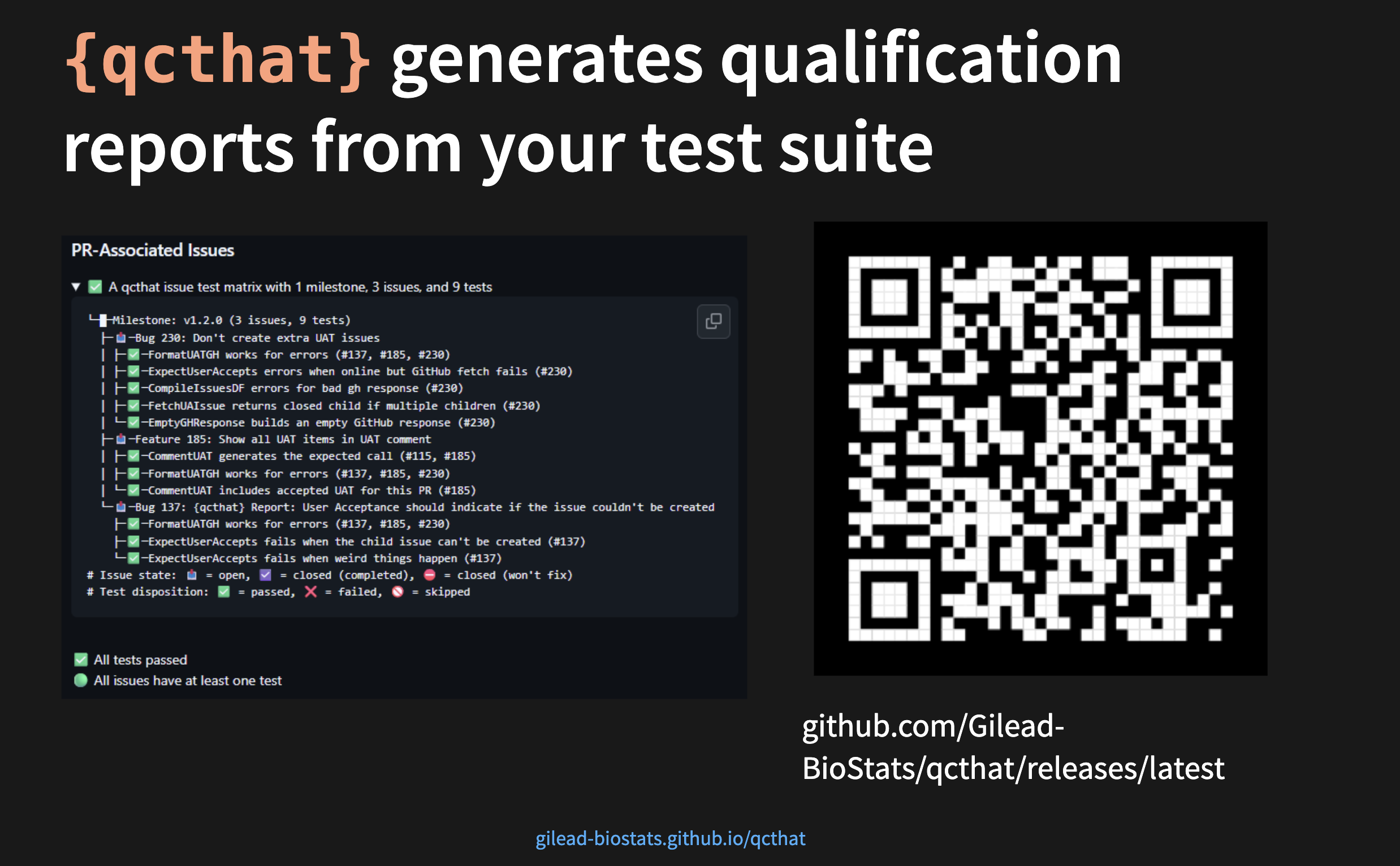

{qcthat} plug (TBD)

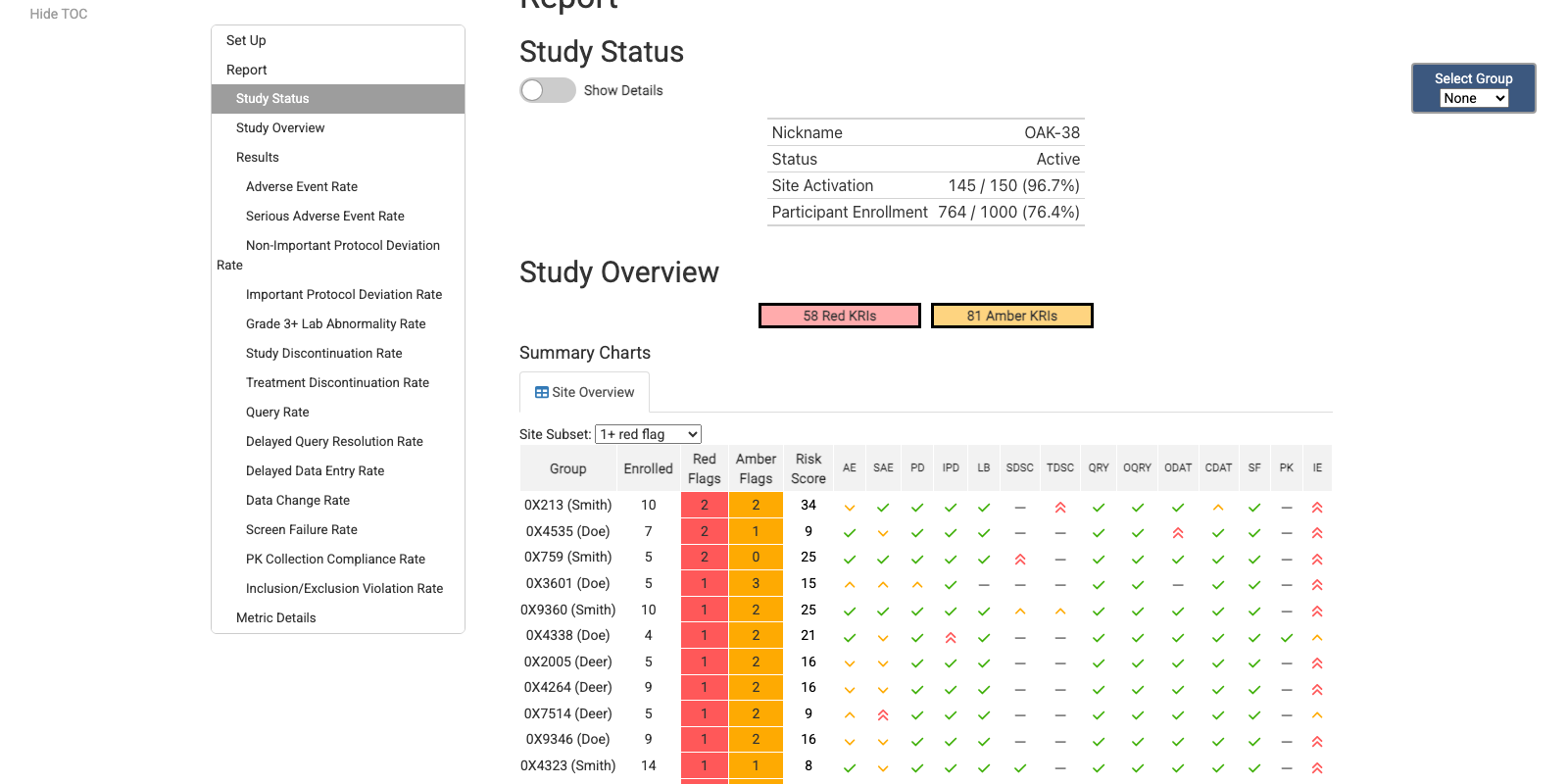

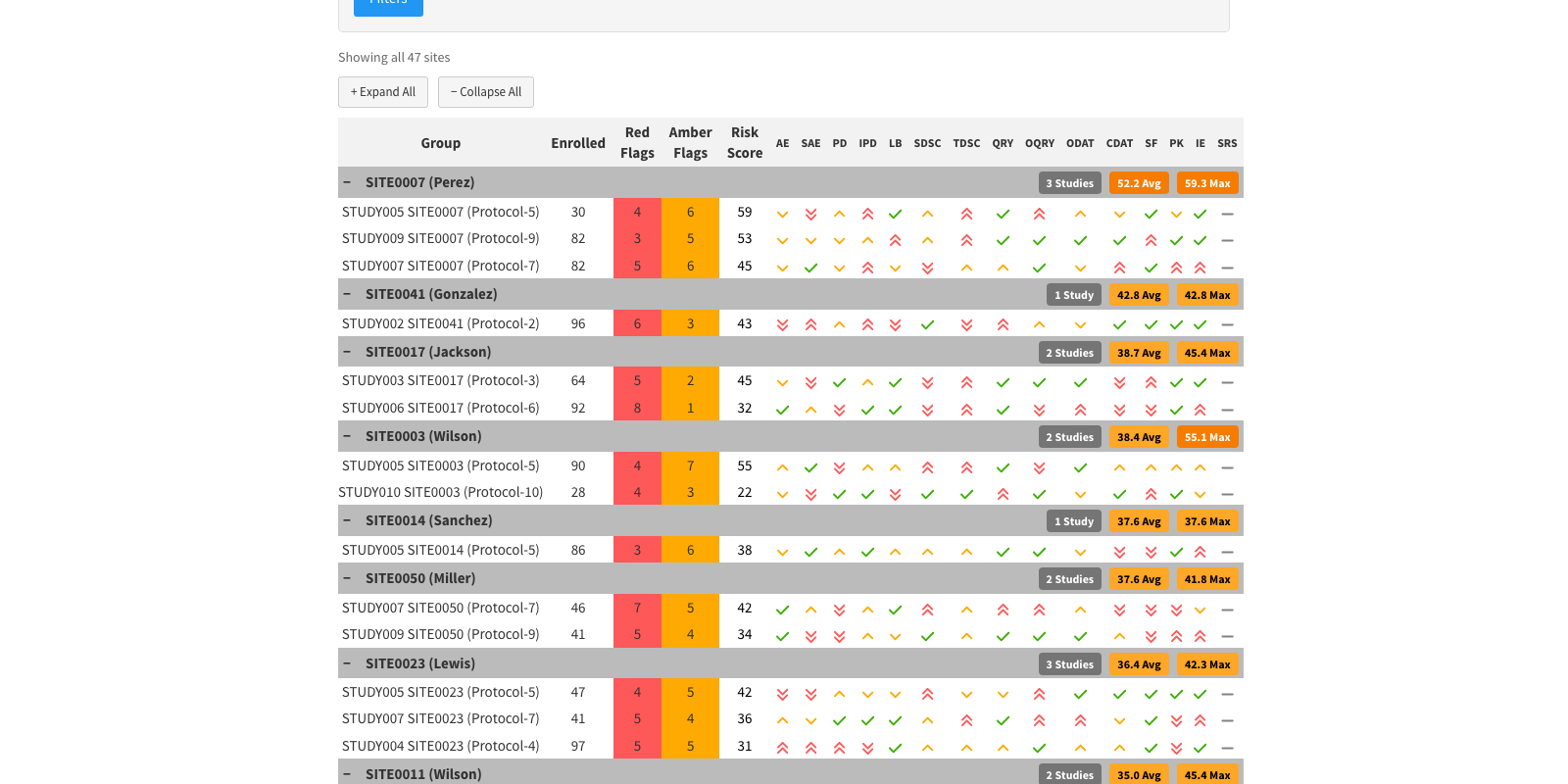

100s of snapshots for dozens of studies

{workr} ❤️ {pharmaverse} (Zelos)

From Raw to SDTM

{sdtm.oak} is a popular R package that modularizes SDTM programming that is EDC/data-standards agnostic
The algorithms and sub-algorithms provided can be reused across multiple SDTM domains
We aim to replicate the results of this vignette using workflows!

SDTM Example: RAW to VS

wf <- yaml::read_yaml(system.file("demo_gsmpharmaverse/workflows/1_RAW_TO_SDTM/VS.yaml"))
lData <- list(
  dm_raw = read.csv(system.file("raw_data/dm.csv", package = "sdtm.oak")),
  vs_raw =  read.csv(system.file("raw_data/vitals_raw_data.csv", package = "sdtm.oak")),
  study_ct = read.csv(system.file("raw_data/sdtm_ct.csv", package = "sdtm.oak"))
)
RunWorkflow(
  lWorkflow = wf,
  lData = lData
)

SDTM Example: Step 1

meta:
  ID: VS
  Type: SDTM
  Description: Transform Raw VS to SDTM VS following sdtm.oak article
  Priority: 1
spec:
  # Read in data
  vs_raw:
    _all:
      required: true
  study_ct:
    _all:
      required: true
steps:
  # Create oak_id_vars
  - output: vs_raw2
    name: sdtm.oak::generate_oak_id_vars
    params:
      raw_dat: vs_raw
      pat_var: "PATNUM"
      raw_src: "vitals"

lData$vs_raw <- generate_oak_id_vars(raw_dat = lData$vs_raw, pat_var = "PATNUM", raw_src = "vitals")

SDTM Example: Step 1 (2)

# lData after Step 1
list(
    vs_raw = {THE RAW DATASET}
    vs_raw2 = {THE RAW DATASET after we read ran generate_oak_id_vars}
)

It may be important to consider how to treat interim objects along the way in the lData dataset, similar to how a team may use pipes, e.g. %>% and |> to chain together one object, it is left to the user to use new names for output or overwrite objects, in this case vs_raw instead of vs_raw2 for the example above.

SDTM Example: CT assignment Steps

  # Map topic variable SYSBP and its qualifiers.
  - output: vs_sysbp
    name: sdtm.oak::hardcode_ct
    params:
      raw_dat: vs_raw
      raw_var: "SYS_BP"
      tgt_var: "VSTESTCD"
      tgt_val: "SYSBP"
      ct_spec: study_ct
      ct_clst: "C66741"
  - output: vs_sysbp
    name: workr::RunQuery
    params:
      df: vs_sysbp
      strQuery: "SELECT * FROM df WHERE VSTESTCD IS NOT NULL"
  # Map topic variable SYSBP and its qualifiers.
  - output: vs_sysbp
    name: sdtm.oak::hardcode_ct
    params:
      tgt_dat: vs_sysbp
      raw_dat: vs_raw
      raw_var: "SYS_BP"
      tgt_var: "VSTEST"
      tgt_val: "Systolic Blood Pressure"
      ct_spec: study_ct
      ct_clst: "C67153"
  - output: vs_sysbp
    name: sdtm.oak::assign_no_ct
    params:
      tgt_dat: vs_sysbp
      raw_dat:  vs_raw
      raw_var: "SYS_BP"
      tgt_var: "VSORRES"

This is equivalent to…..

SDTM Example: With pipes

# Map topic variable SYSBP and its qualifiers.
vs_sysbp <-
  hardcode_ct(
    raw_dat = vs_raw,
    raw_var = "SYS_BP",
    tgt_var = "VSTESTCD",
    tgt_val = "SYSBP",
    ct_spec = study_ct,
    ct_clst = "C66741"
  ) %>%
  dplyr::filter(!is.na(.data$VSTESTCD))  %>%
  hardcode_ct(
    raw_dat = vs_raw,
    raw_var = "SYS_BP",
    tgt_var = "VSTEST",
    tgt_val = "Systolic Blood Pressure",
    ct_spec = study_ct,
    ct_clst = "C67153",
    id_vars = oak_id_vars()
  ) %>%
  assign_no_ct(
    raw_dat = vs_raw,
    raw_var = "SYS_BP",
    tgt_var = "VSORRES",
    id_vars = oak_id_vars()
  )

SDTM Example: With pipes (2)

Each pipe statement is equivalent to a step in the workflow; integration of any package would mostly be depend on familiarity with a particular R Package, not necessarily this workr framework.

From SDTM to ADaM

{admiral} is a popular R package that modularizes ADaM programming with many extension packages that address specific therapeutic area needs
Here we’ll highlight just a few specific functions, but the documentation and user guides for {admiral} are some of the best amongst all R packages

ADaM Example: VS to ADVS

wf <- yaml::read_yaml(system.file("demo_gsmpharmaverse/workflows/2_SDTM_TO_ADAM/ADVS.yaml"))
sdtm <- list(
  SDTM_DM = arrow::read_parquet(system.file("demo_gsmpharmaverse/data/SDTM/SDTM_DM.parquet", package = "workr")),
  SDTM_VS = arrow::read_parquet(system.file("demo_gsmpharmaverse/data/SDTM/SDTM_VS.parquet", package = "workr"))
)
RunWorkflow(lWorkflow = wf, lData = sdtm)

ADaM Example: Create MAP

meta:
  ID: ADVS
  Type: ADAM
  Description: Create Basic ADVS
  Priority: 1
spec:
  SDTM_DM:
    _all:
      required: true
  SDTM_VS:
    _all:
      required: true
steps:
  - output: initial_advs
    name: admiral::derive_vars_merged
    params:
      dataset: SDTM_VS
      dataset_add: SDTM_DM
      new_vars: !expr exprs(TRT01A)
      by_vars: !expr exprs(STUDYID, USUBJID)
  - output: advs
    name: dplyr::mutate
    params:
      .data: initial_advs
      PARAMCD: !expr rlang::expr(.data[["VSTESTCD"]])
      AVAL: !expr rlang::expr(.data[["VSORRES"]])
  - output: advs
    name: admiral::derive_param_map
    params:
      dataset: advs
      by_vars: !expr exprs(STUDYID, USUBJID, TRT01A, VSDTC, VISIT, VISITNUM, VSTPT, VSTPTNUM)
      sysbp_code: 'SYSBP'
      diabp_code: 'DIABP'
      get_unit_expr: !expr rlang::expr(.data[["VSORRESU"]])

ADaM Example: Create MAP (2)

By now, it’s clear how to structure a workflow to arrive at a desired object, in this case, an ADaM dataset, after following our previous examples. Here, we highlight the use of derive_param_map() which would create an associated mean arterial pressure value based off of SYSBP and DIABP values.

ADaM Example: Create MAP (3)

Had this been done through a series of tidyverse packages it would probably invoke quite a handful of functions and this is where admiral demonstrates is advantages and convenience.
So some things to consider as future work/collaboration, especially for admiral, would be how to harmonize the use of expressors/quasiquotations, as it may be confusing to how to necessarily how to handle all the rlang specific uses of expr(), exprs(), !! , etc.

From ADaM to TFL

How every team/organization handles data visualizations may just have the most variance
We will go over a way that uses a workflow to render Rmarkdown documents with prespecified templates for tables/figures, specifically using gtsummary and safetyCharts
The setup for this would be applicable for shiny apps, static reports, web-based html reports, where to host or view the final object is to be left to the user

TFL Example: ADVS to TFL

wf <- yaml::read_yaml(system.file("demo_gsmpharmaverse/workflows/3_ADAM_TO_TFL/WorkProduct1.yaml", package = "workr"), warn = FALSE)
adam <- list(
  ADVS = arrow::read_parquet(system.file("demo_gsmpharmaverse/data/ADAM/ADAM_ADVS.parquet", package = "workr"))
)
workr::RunWorkflows(lWorkflows = wf, lData = adam )

TFL Example: Render Rmarkdown

meta:
  ID: WorkProduct1
  Type: TFL
  Description: Create Basic Work Product/Report which can modularize the tables included
  Priority: 1
spec:
  ADVS:
    _all:
      required: true
steps:
  - output: lParams
    name: list
    params:
      'dfADVS': ADVS
  - output: table1
    name: rmarkdown::render
    params:
      input: !expr  here::here("demo_gsmpharmaverse", "report_templates", "WorkProduct1.Rmd")
      output_file: !expr   here::here("demo_gsmpharmaverse", "TFLS", "WorkProduct1.html")
      envir: !expr new.env(parent = globalenv())
      params: lParams

TFL Example: Render Rmarkdown (2)

These rendered documents (html in this case) can be mounted into a preferred viewing environment (r shiny apps, websites, pdf over email, etc.) for whoever the end user may be.
The methodology & technical infrastructure will be left to the user.

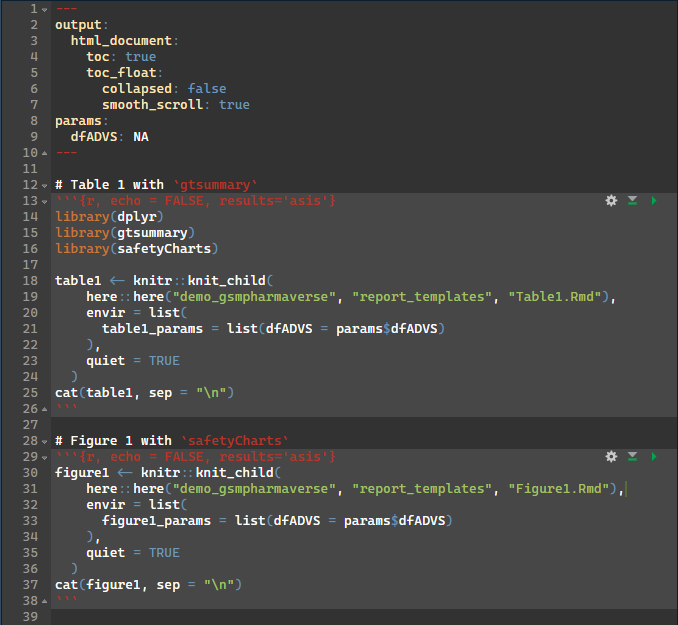

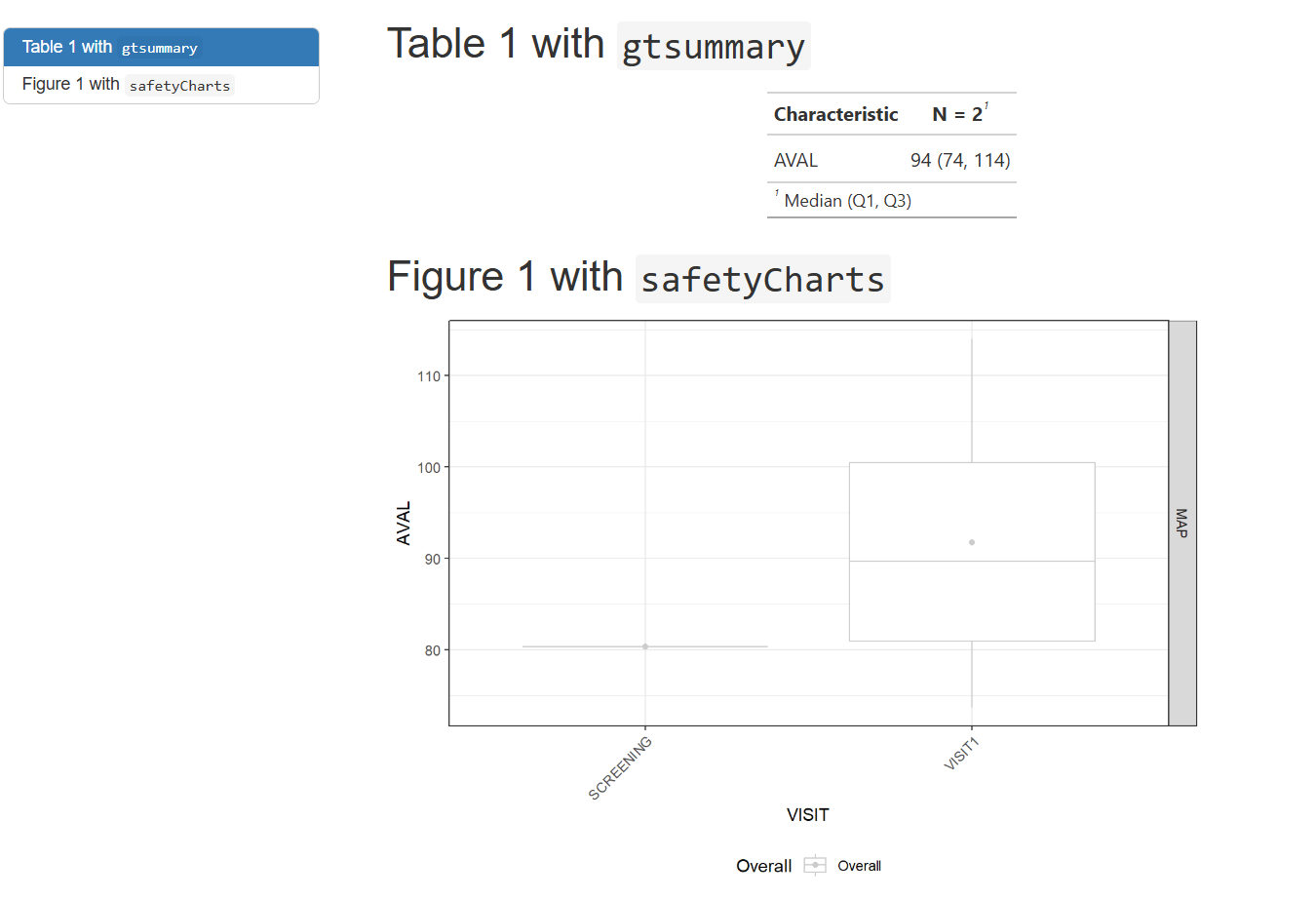

TFL WorkProduct 1: Parent Rmd

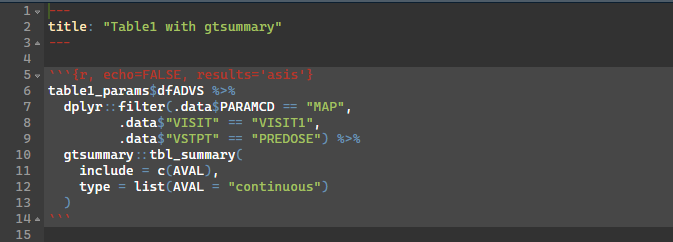

TFL WorkProduct 1: Child Rmd(s)

TFL Overview

Using smaller child .Rmds that may match a respective company standard table/figure template may be favorable in this scenario
This allows a larger work product/bundle to be stitched together with these child rmarkdowns to reduce clutter of the main document.
For some deliveries it may be necessary to only have a few tables and figures, and other deliveries a much heftier report. This framework allows a “lego set” style assembled work deliverable in a pick and choose fashion

From ADaM to ARS/ARD

{cards} is an R package for creating CDISC Analysis Results Data (ARD)
It is designed to support automation, reproducibility, reusability, and traceability of analysis results

ARS/ARD Example: ADVS summary

wf <- yaml::read_yaml(system.file("demo_gsmpharmaverse/workflows/3_ADAM_TO_ARS/table_mean_arterial_pressure.yaml"))
adam <- list(
  ADVS = arrow::read_parquet(system.file("demo_gsmpharmaverse/data/ADAM/ADAM_ADVS.parquet", package = "workr"))
)
workr::RunWorkflows(lWorkflows = wf, lData = adam )

ARS/ARD Example: Create Summary Statistics

meta:
  ID: table_mean_arterial_pressure
  Type: ars
  Description: Create table 1 ARS
  Priority: 1
spec:
  ADVS:
    _all:
      required: true
steps:
  - output: predose_visit1_map
    name: workr::RunQuery
    params:
      df: ADVS
      strQuery: "SELECT * FROM df WHERE PARAMCD = 'MAP' AND VISIT = 'VISIT1' AND VSTPT = 'PREDOSE'"
  - output: table_predose_visit1_map
    name: cards::ard_summary
    params:
      data: predose_visit1_map
      variables:
        - AVAL

ARS/ARD Example: Considerations

The primary output (thus far) of these workflows is typically a derived dataset, but persistence (load/save) is intentionally decoupled
Workflows orchestrate transformation logic; storage strategy is flexible and left to the user/organization
Saving outputs (e.g., .csv, .parquet, .json, or a data lake) can be implemented as an additional workflow step

Enterprise {workr} (Zelos?)

Helper functions

RunStep()
- RunStep parses params as follows: lMeta → lData → lSpec → names(lMeta) → names(lData) → as.character({param})
MakeWorkflow()
RunWorkflows()
RunQuery()

Data Specifications

Define expected inputs / outputs for each step
Validate data before running steps

Save / Load

Compatible with database frameworks, S3, DuckDB, etc.

GitHub Actions integrations

(TBD)

“Production frameworks”

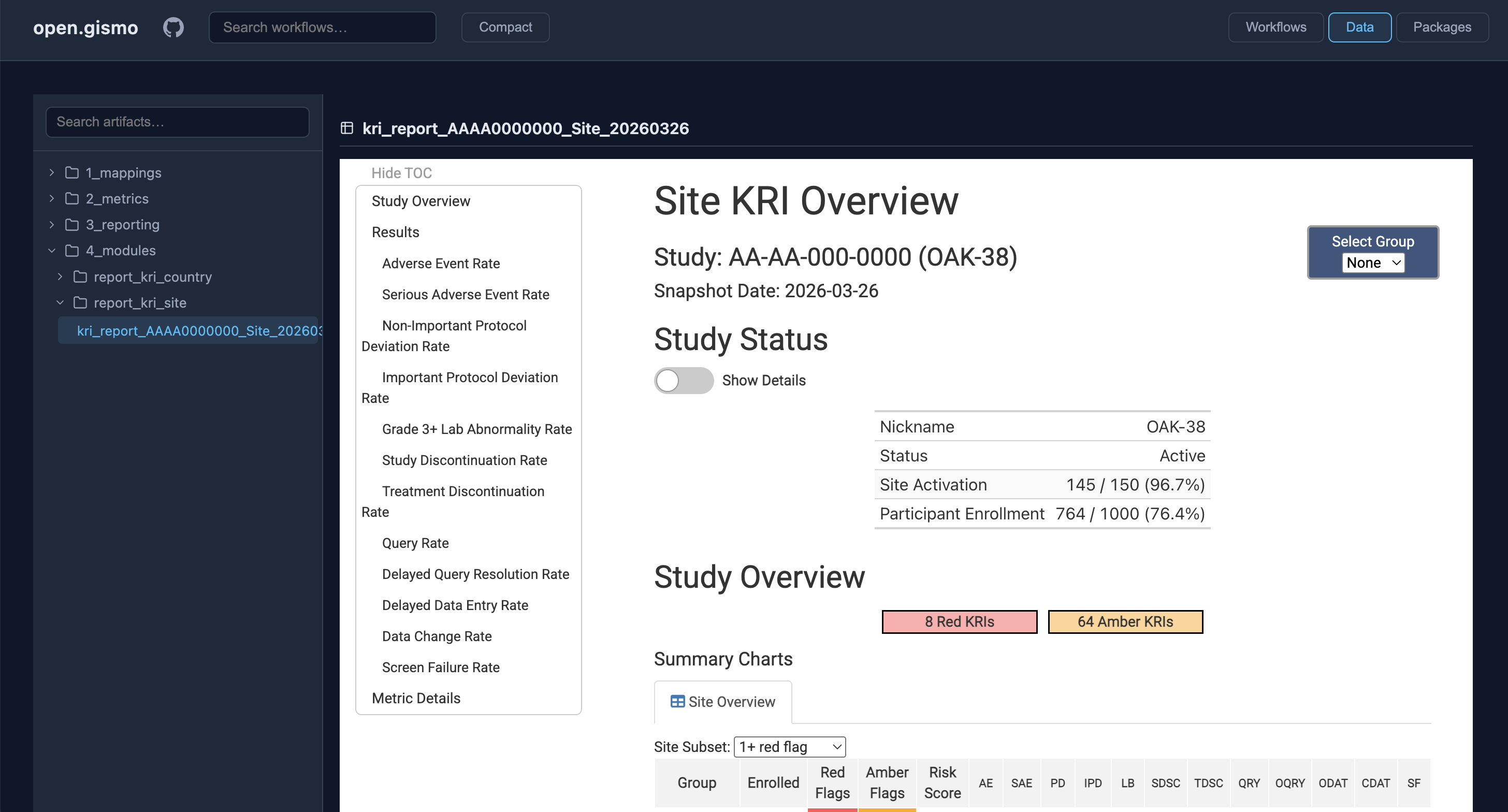

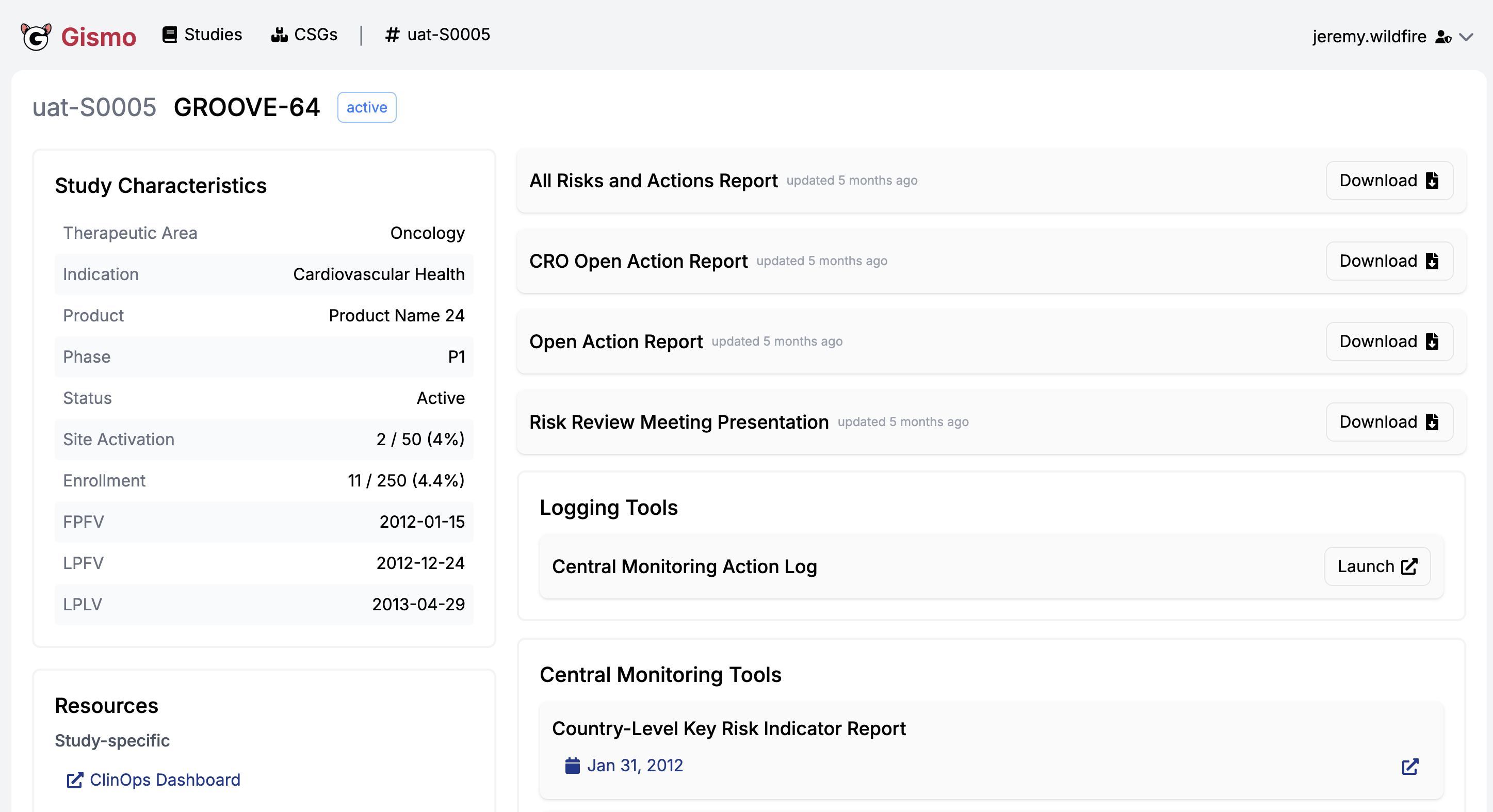

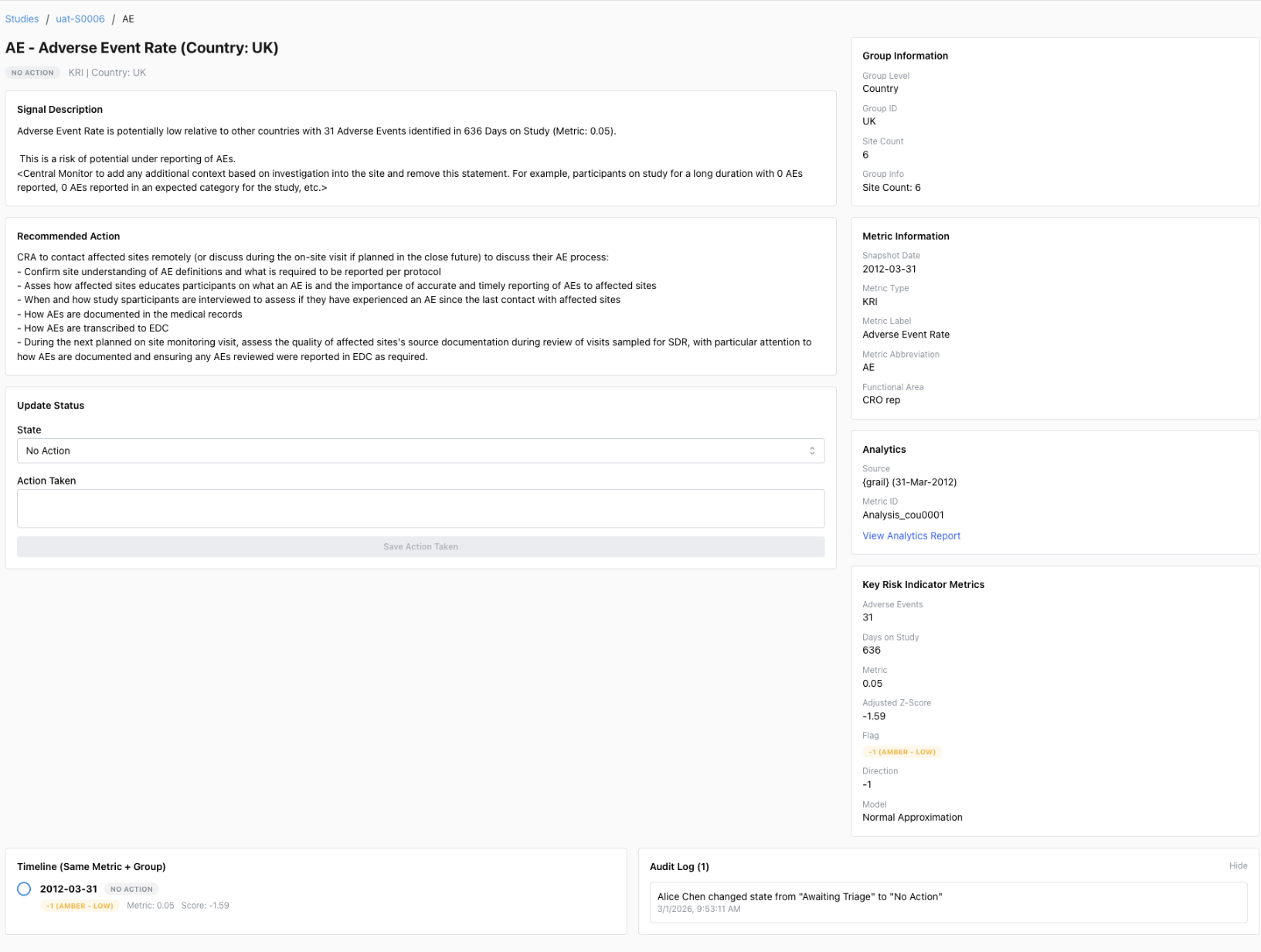

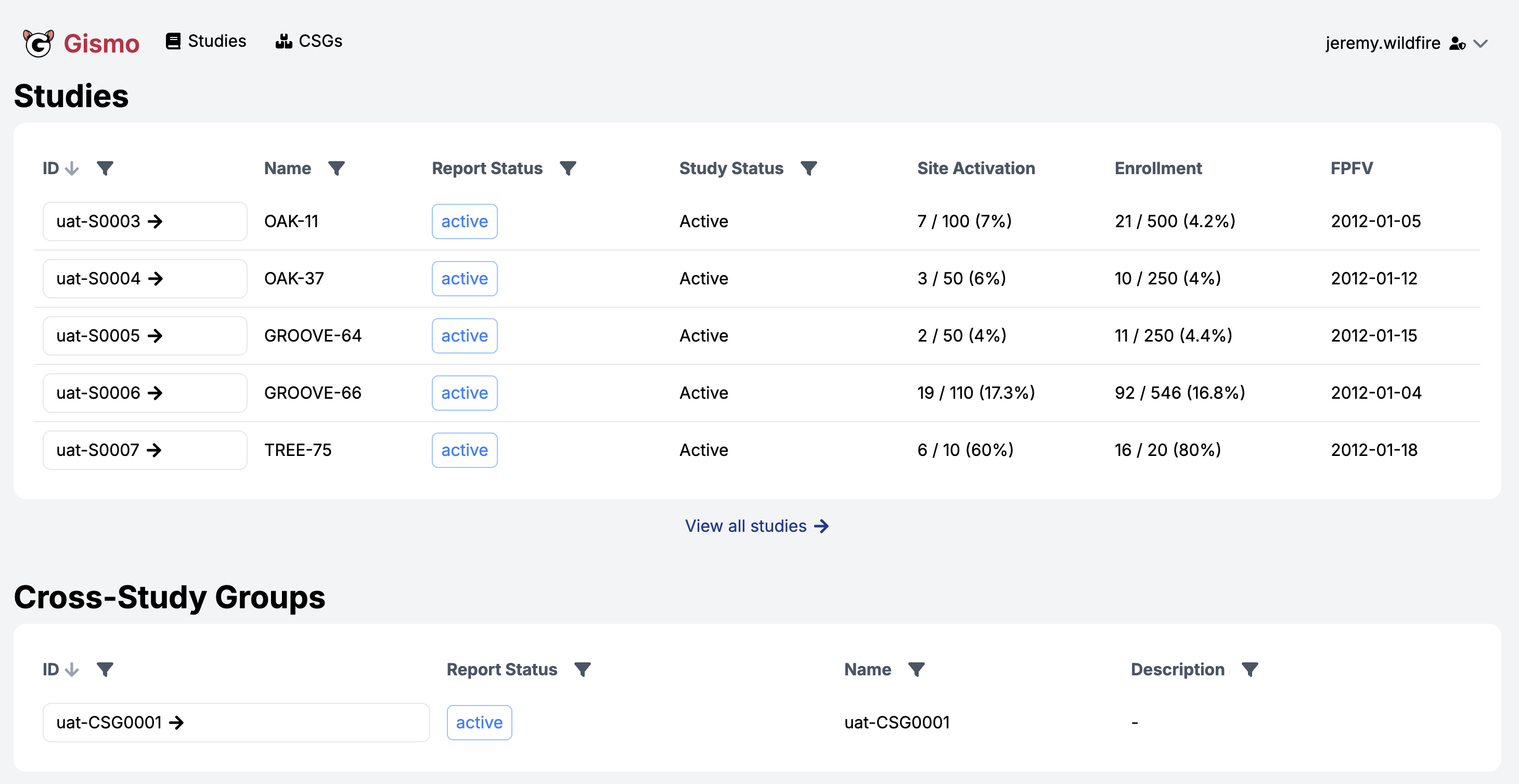

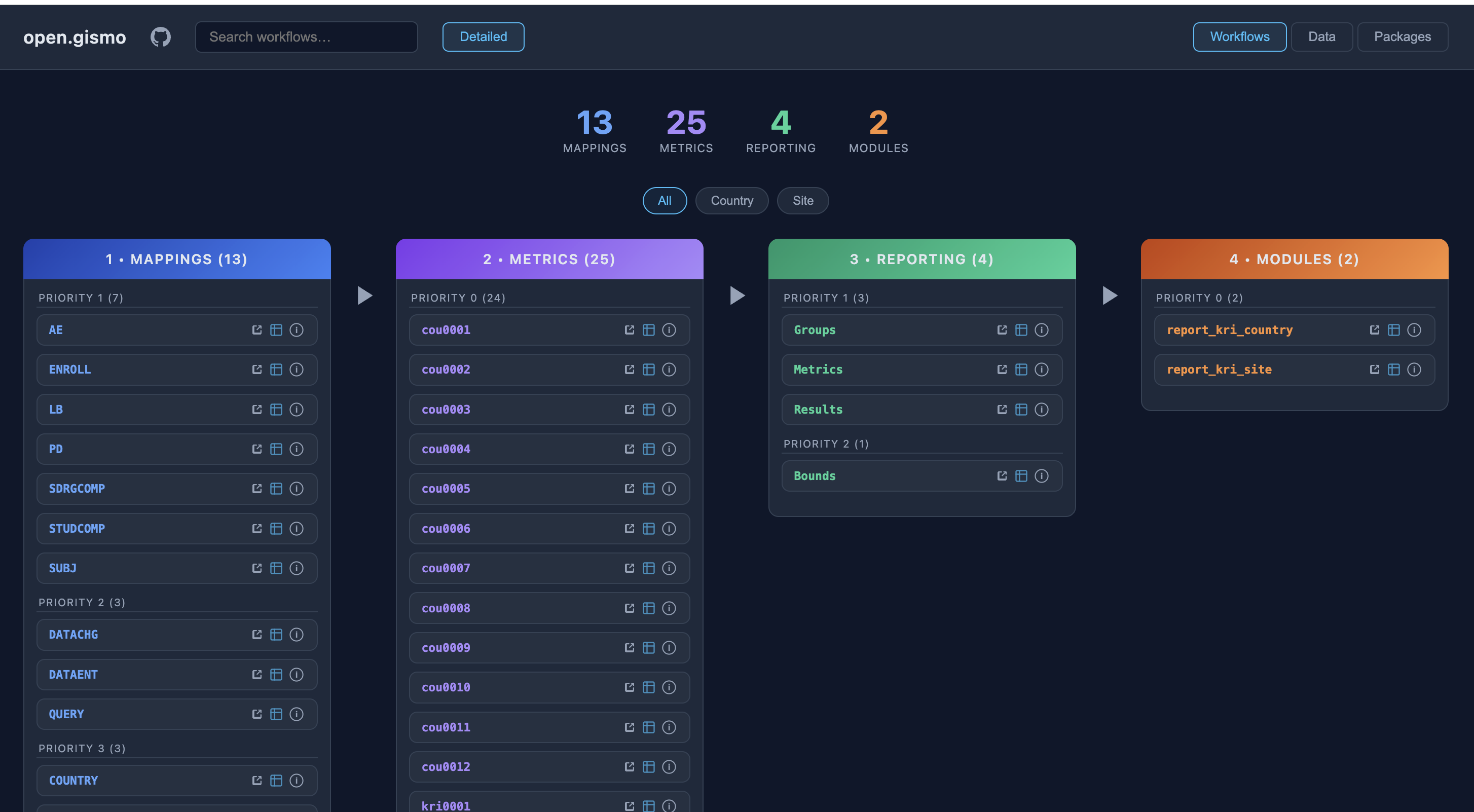

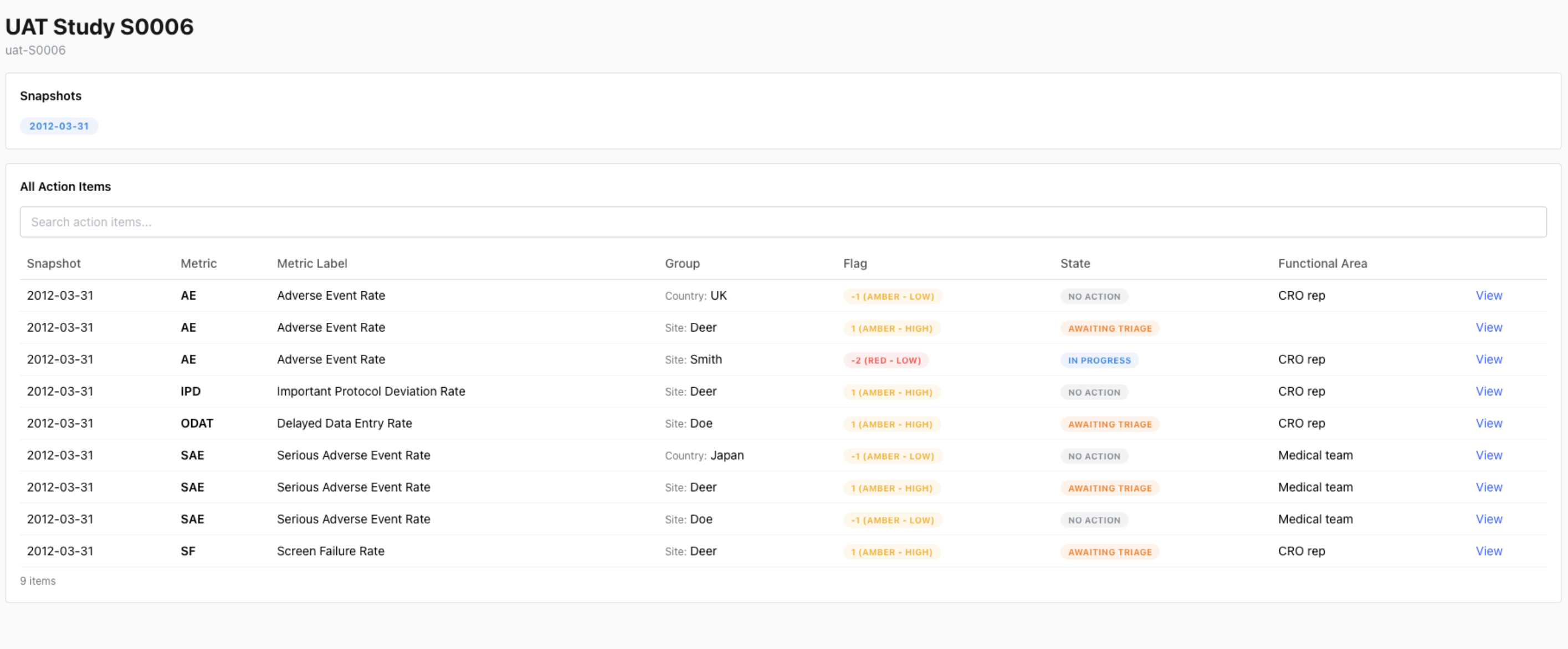

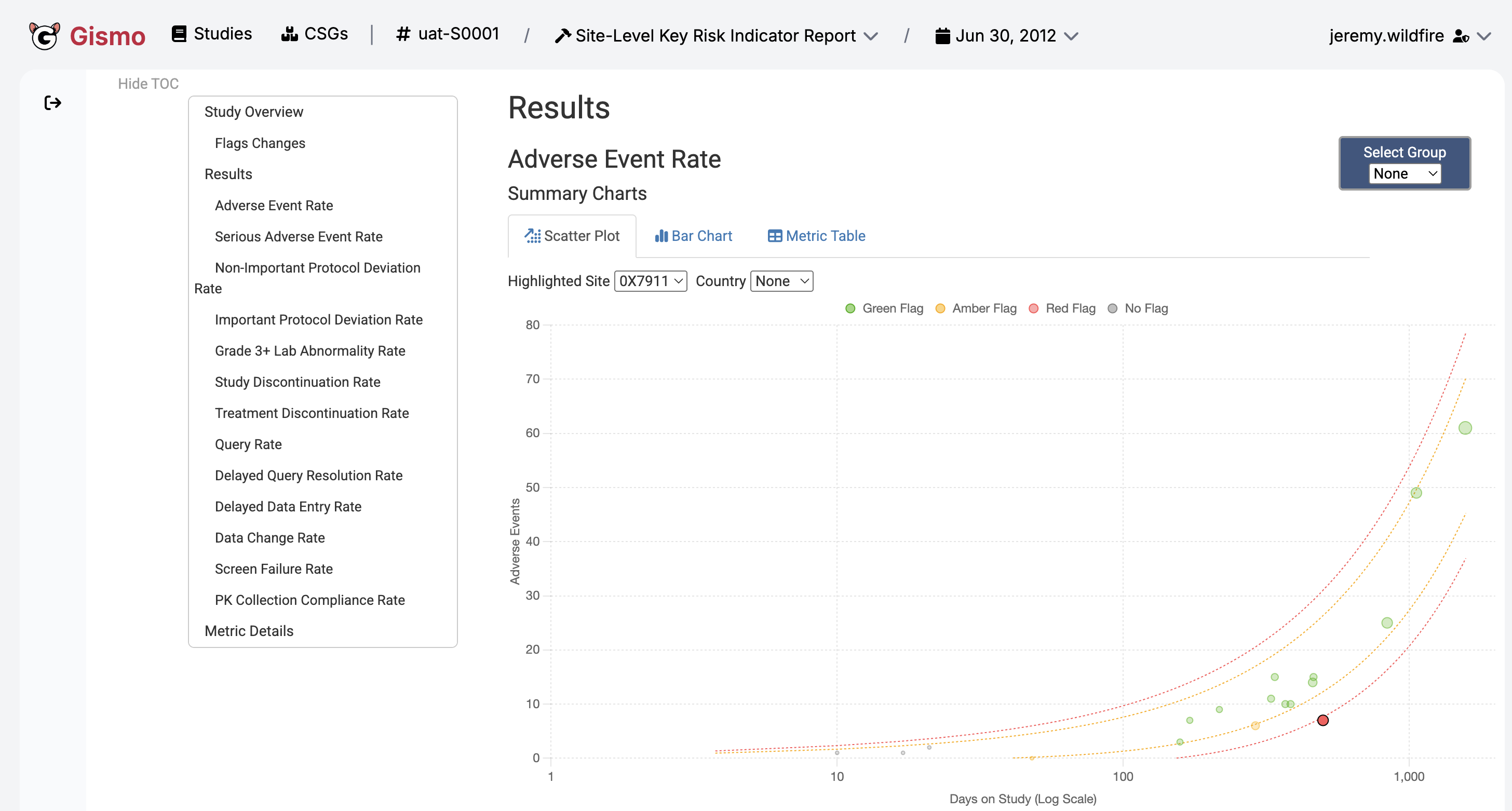

Gismo intro (TBD)
Example X: GitHub demo (TBD)
